Ensuring an application runs smoothly in production is crucial. This post guides you to write and execute a simple Gatling API load test using JavaScript to ensure the stability, speed, scalability, and responsiveness of your application under a given workload.

You may have written unit tests and functional tests, and the application looked good, so you shipped it to production. However, it suddenly crashes, experiences performance issues, or encounters API request timeout errors. The reason is simple: the conditions in the test environment and the production environment are not the same. The amount of data in the database, the traffic load, and the architecture in the production environment differ from those in your test environment. As a result production load is always more:

Production load increase because of following regions :

Larger Audience : You may have millions of users in the production environment.

Seasonal Peaks : Let’s say you have an e-commerce portal to sell products. You may experience higher traffic during sales events like Black Friday, Boxing Day, or when running any promotional campaigns.

Fast Growth : Business grows faster than expected which will increase the traffic as well as data in the database.

Poor application performance and crashes directly impact sales or even damage the brand.

As developers, our main goal is to ensure the stability, speed, scalability, and responsiveness of an application under a given workload.

People may say that if your application is running in the cloud, you don’t need to worry too much about performance since the infrastructure will automatically autoscale and take care of the application’s performance. But this is not 100% true. You may have issues like N+1 queries, no caching, or no pagination, etc. which can still affect performance.

What is load testing ?

Load testing is the non-functional software testing technique which determines the stability, speed, scalability, and responsiveness of an application under a specified workload.

Load testing involves simulating the production environment with virtual users to identify bottlenecks in the application, analyze response times, and determine the appropriate infrastructure size for a given workload.

Types of Load test

There are three types of load tests:

Capacity Test

This kind of test is generally used to identify the maximum capacity of your application and how it scales. Keep increasing the number of users per second to find application’s breaking point.

Stress Test

Identify how the application behaves after sudden load peaks. Does it completely crash, return to normal, or experience latency?

Soak test

In a soak test, you will run a high or steady load for a long time and observe how the application behaves. This kind of test helps you identify memory leaks, resource leaks, or degradation that could happen over time.

Gatling

Gatling is a highly flexible load-testing platform. You can write load tests in Java, Kotlin, Scala and, JavaScript/TypeScript or use no-code feature with Gatling Enterprise. JavaScript Gatling load-testing is only avilabe form Gatling version 3.11.3.

Java, Kotlin, and Scala are very popular languages for Gatling scripting, but I chose JavaScript because it is one of the most popular languages among developers.

Why Gatling?

People may ask why not JMeter and why Gatling? Both have their own advantages and disadvantages. For me, it’s a personal choice, and the simple answer is that I am a developer and I like to Load-Test-As-Code, which is only possible in Gatling. You must have skills in Scala, Kotlin, Java, or JavaScript/TypeScript.

Prerequisites

Node.js v18 or later (LTS versions only) and npm v8 or later.
JVM

In this post I am going to write a load test script to test the login API: I have already created a application which is avilabe in the GitHub mysql-express-node-auth-app . You can simply clone in you local machine and run. App will be accessable http://localhost:8000 and app doc will be accessble http://localhost:8000/docs. once you open http://localhost:8000/docs you will see below screen in the browser.

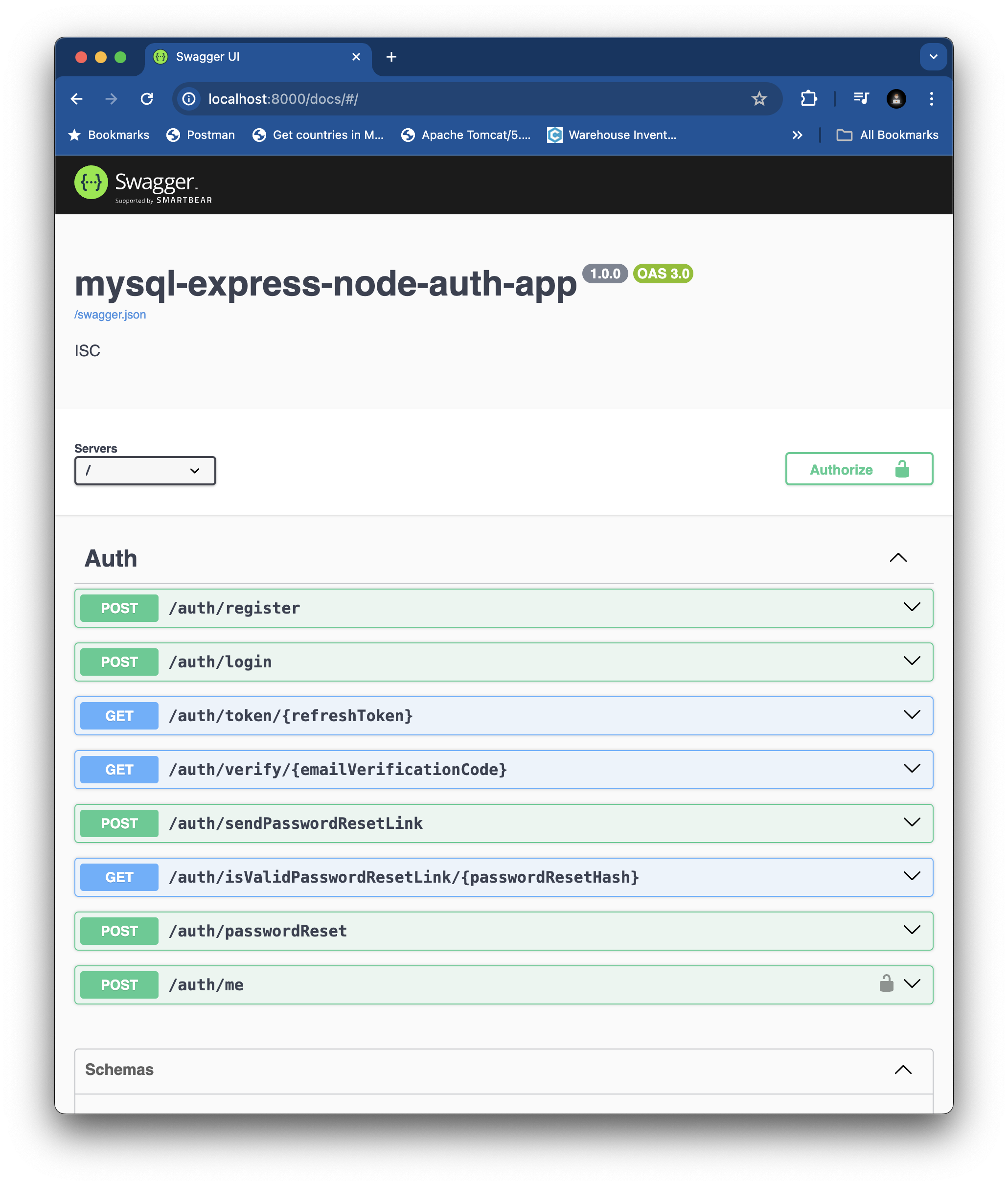

JS App

Note:- If you have your own app, you can write tests for it. This app is intended solely for demo purposes.

Download Gatling for JavaScript

Once mysql-express-node-auth-app is up and running in your machine, you can Download Gatling for JavaScript

Setup Gatling Project Locally

Once download completed Unzip and open the project in your IDE or terminal and then navigate to the /javascript folder for JavaScript projects in your terminal.

You need to run npm install to install the packages and dependencies including the gatling command. This command will take couple of minute to complete.

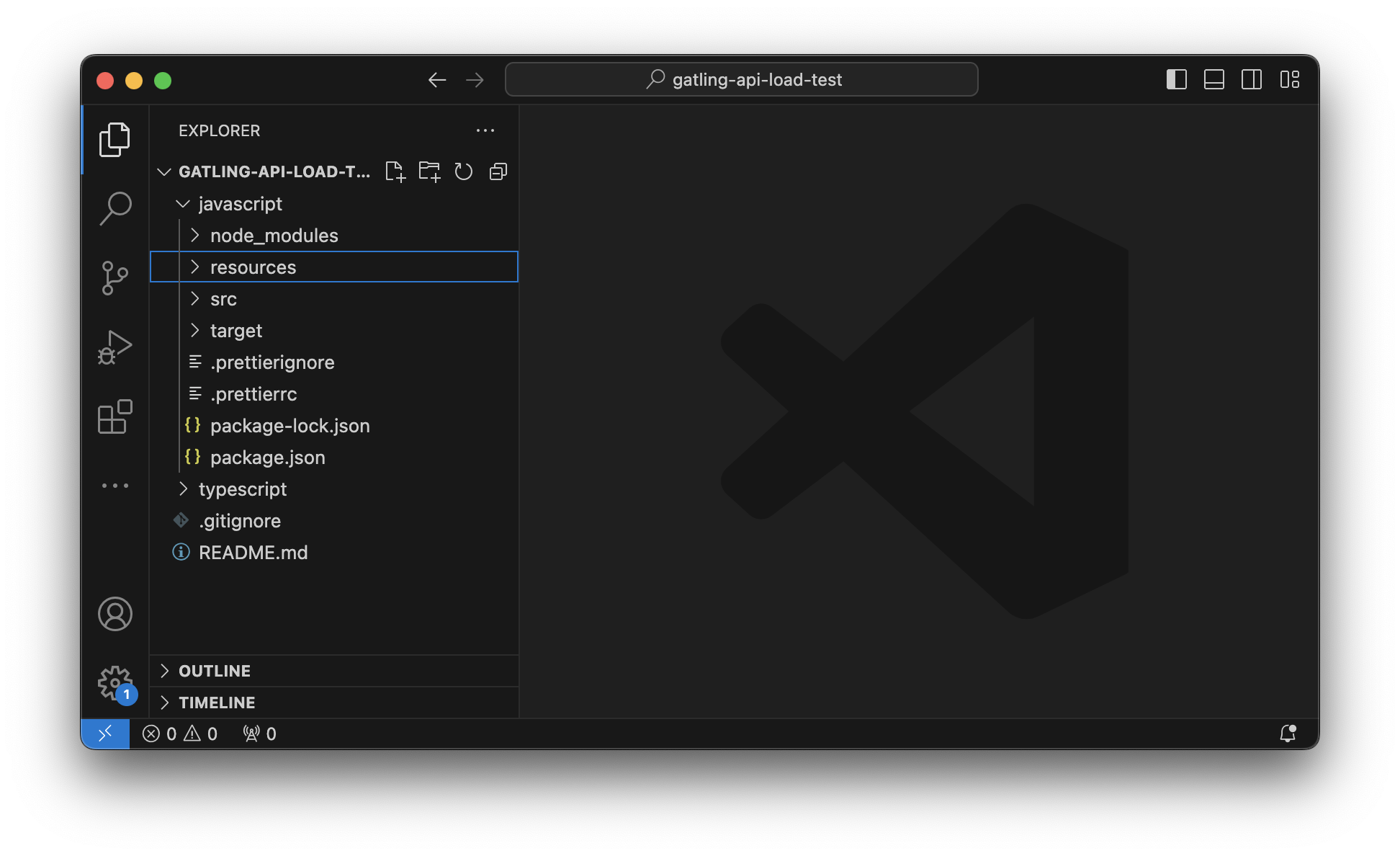

I am using VS code, my project sctuture is like below :

project structure

Create API Load Test Script

describing a scenario,
setting up the injection profile (virtual users profile).

All the test scripts need to be created in side javascript/src folder and feed data (test data) inside javascript/resources folder.

Create Feeder file

Let me create users.csv file inside javascript/resources/ folder and add below data in the file.

1
2
3
4
5
email,password
example1@pb.com,password
example2@pb.com,password
example3@pb.com,password
example4@pb.com,password

These users need to be in database and verified. I have registred the users wing auth/register/ link:

Importing Gatling functions

To set up the test file use the following procedure:

In your IDE create the login.gatling.js file in side javascript/src/ folder.
Copy the following import statements and past them in the login.gatling.js file.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import {
    simulation,
    scenario,
    exec,
    csv,
    feed,
    repeat,
    rampUsers,
    StringBody,
    jsonPath
} from "@gatling.io/core";
import { http } from "@gatling.io/http";

Define the Simulation function

The simulation function takes the setUp function as an argument, which is used to write a script. To add the simulation function, after the import statements, add:

1
2
3
export default simulation((setUp) => {
 // Add the HttpProtocolBuilder here
});

Configuring the Protocol

Inside the simulation function, define an HTTP protocol. You can define options like baseUrl, acceptHeader acceptLanguageHeader, acceptEncodingHeader, userAgentHeader etc.

Here, I am hardcoing baseUrl value to http://localhost:8000 which is the end point for our test app running locally. You can have youir own.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
export default simulation((setUp) => {
 const httpProtocol = http
      //Write the scenario here
      .baseUrl("http://localhost:8000")
      .acceptHeader("text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8")
      .acceptLanguageHeader("en-US,en;q=0.5")
      .acceptEncodingHeader("gzip, deflate")
      .userAgentHeader(
        "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:109.0) Gecko/20100101 Firefox/119.0"
      );
});

Write the scenario

I have two scenarios: one involves calling the /auth/login POST API with email and password in JSON body. If the login is successful, store the refreshToken in a variable named refreshToken.

The other scenario is to retrieve the token using the /auth/token GET API with the valid refreshToken generated by scenarios one.

Both scenarios are repeated 5 times. You can have any values depend on your use case.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
export default simulation((setUp) => {

const feeder = csv("users.csv").random();
    const login = exec(
      feed(feeder),
      http("Login")
        .post("/auth/login")
        .body(StringBody('{"email": "#{email}", "password":"#{password}"}')).asJson()
        .check(
            jsonPath("$.refreshToken").saveAs('refreshToken')
        )
    );

    const getAccessToken = exec(
        http("Get Access Token")
          .get("/auth/token/#{refreshToken}").asJson()
          .check(
            jsonPath("$.token").saveAs('token')
          )
      );

  const httpProtocol = http
      .baseUrl("http://localhost:8000")
      .acceptHeader("text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8")
      .acceptLanguageHeader("en-US,en;q=0.5")
      .acceptEncodingHeader("gzip, deflate")
      .userAgentHeader(
        "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:109.0) Gecko/20100101 Firefox/119.0"
      );

    // repeat is a loop resolved at RUNTIME
    const scn = scenario("Login Scenario").repeat(5,'id').on(
      exec(login)
      .pause(1)
      .exec(getAccessToken)
      .pause(1)
    );

     //Define the injection profile here.
});

Define the injection profile

The final step of a Gatling simulation is the injection profile. setUp function need to call exactly once to configure in the injection profile. If you have several scenarios, each needs its own injection profile.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
export default simulation((setUp) => {
    const feeder = csv("users.csv").random(); // load data form users.csv in random order

    const login = exec(
      feed(feeder),
      http("Login")
        .post("/auth/login")
        .body(StringBody('{"email": "#{email}", "password":"#{password}"}')).asJson()
        .check(
            jsonPath("$.refreshToken").saveAs('refreshToken')
        )
    );

    const getAccessToken = exec(
        http("Get Access Token")
          .get("/auth/token/#{refreshToken}").asJson()
          .check(
            jsonPath("$.token").saveAs('token')
          )
      );

    const httpProtocol = http
      .baseUrl("http://localhost:8000")
      .acceptHeader("text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8")
      .acceptLanguageHeader("en-US,en;q=0.5")
      .acceptEncodingHeader("gzip, deflate")
      .userAgentHeader(
        "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:109.0) Gecko/20100101 Firefox/119.0"
      );
    // repeat is a loop resolved at RUNTIME
    const scn = scenario("Login Scenario").repeat(5,'id').on(
      exec(login)
      .pause(1)
      .exec(getAccessToken)
      .pause(1)
    );

    setUp(
    // 100 concurrent users over 10 seconds
      scn.injectOpen(rampUsers(100).during(10))
    ).protocols(httpProtocol);
  });

Test execution

Now, you should have a completed simulation that looks like the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import {
    simulation,
    scenario,
    exec,
    csv,
    feed,
    repeat,
    rampUsers,
    StringBody,
    jsonPath
  } from "@gatling.io/core";
  import { http, status } from "@gatling.io/http";

  export default simulation((setUp) => {
    const feeder = csv("users.csv").random();

    const login = exec(
      feed(feeder),
      http("Login")
        .post("/auth/login")
        .body(StringBody('{"email": "#{email}", "password":"#{password}"}')).asJson()
        .check(
            jsonPath("$.refreshToken").saveAs('refreshToken')
        )
    );

    const getAccessToken = exec(
        http("Get Access Token")
          .get("/auth/token/#{refreshToken}").asJson()
          .check(
            jsonPath("$.token").saveAs('token')
          )
      );

    const httpProtocol = http
      .baseUrl("http://localhost:8000")
      .acceptHeader("text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8")
      .acceptLanguageHeader("en-US,en;q=0.5")
      .acceptEncodingHeader("gzip, deflate")
      .userAgentHeader(
        "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:109.0) Gecko/20100101 Firefox/119.0"
      );
    // repeat is a loop resolved at RUNTIME
    const scn = scenario("Login Scenario").repeat(5,'id').on(
      exec(login)
      .pause(1)
      .exec(getAccessToken)
      .pause(1)
    );

    setUp(
    // 100 concurrent users over 10 seconds
      scn.injectOpen(rampUsers(100).during(10))
    ).protocols(httpProtocol);
  });

Run the Simulation locally

Run following command to run the simulation/test

1
npx gatling run --simulation login

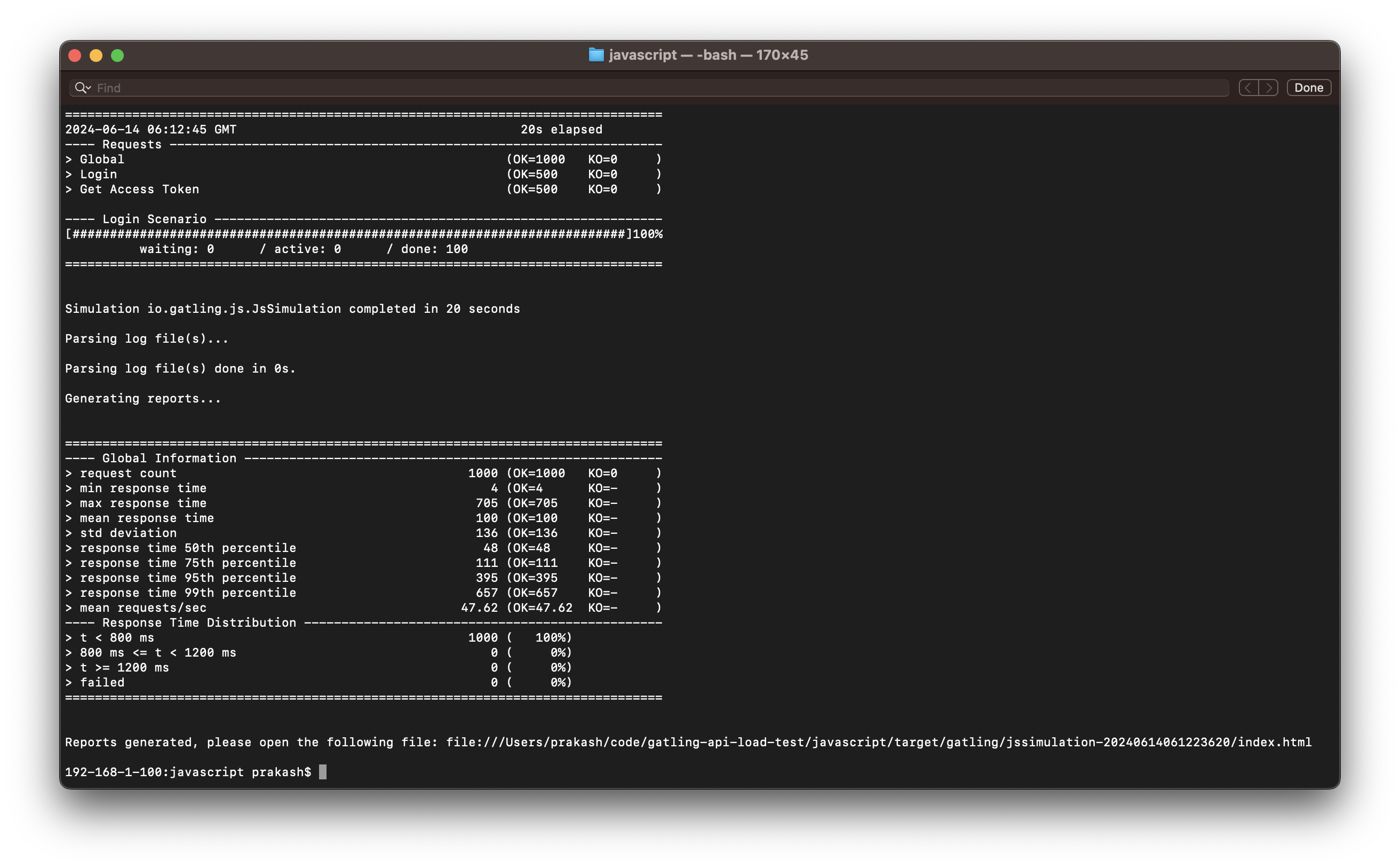

When the test has finished you will see below result in the terminal.

simulation output

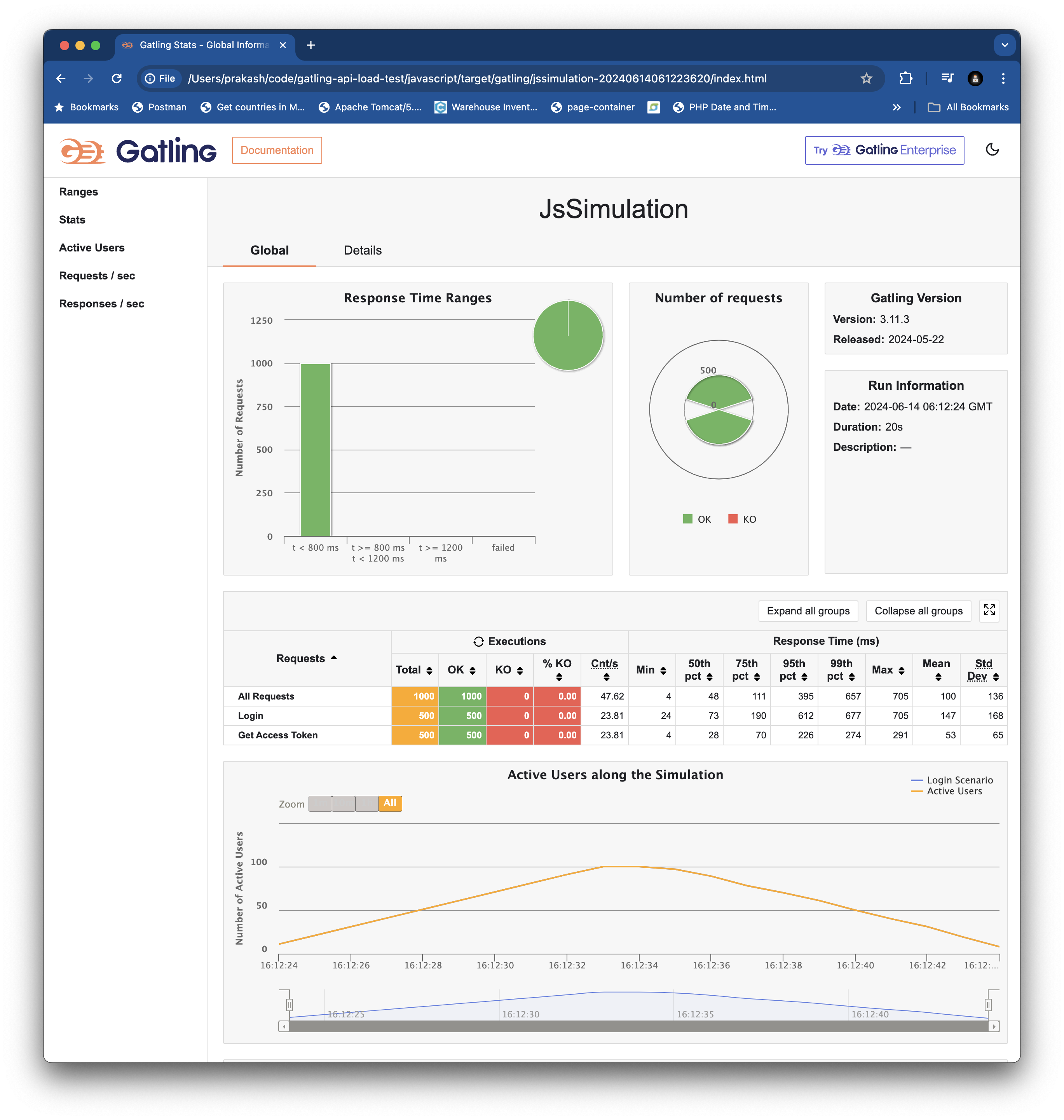

There is an HTML link in the terminal that you can use to access the static report via browser.

html report

Congrats! You have written your first Gatling simulation or API load test for 100 concurrent users over 10 seconds.

Let’s analysis the result.

Response Time Distribution Analysis

In above screenshot we can see below response time. Which means for all the request response time was less than 800 milliseconds. This suggests excellent performance, as all requests responded very quickly, within 800 ms. This shows that the system handles all requests efficiently.

1
2
3
4
5
---- Response Time Distribution --------------------------------------
> t < 800 ms              1000 (100%)
> 800 ms <= t < 1200 ms      0 (0%)
> t >= 1200 ms               0 (0%)
> failed                     0 (0%)

For same test if we had metric like below:

1
2
3
4
5
---- Response Time Distribution --------------------------------------
> t < 800 ms              500 (50%)
> 800 ms <= t < 1200 ms   250 (25%)
> t >= 1200 ms            125 (12.5%)
> failed                  125 (12.5%)

Good Performance (t < 800 ms): Half of all requests (50%) were processed very quickly (in less than 800 ms). This shows that the system handles many requests efficiently.

Moderate Performance (800 ms ≤ t < 1200 ms): 25% of requests fell into the 800 ms to 1.2 seconds range, indicating moderate performance. These response times are acceptable but may require attention if further optimization is desired.

Slow Performance (t ≥ 1200 ms): 12.5% of requests took longer than 1.2 seconds, which may indicate performance bottlenecks or issues under higher load. These slower requests could negatively affect user experience.

Failures: 12.5% of the requests failed, which is a critical issue. The system has a noticeable failure rate, meaning every eighth request does not complete successfully. This needs immediate attention to ensure reliability and stability

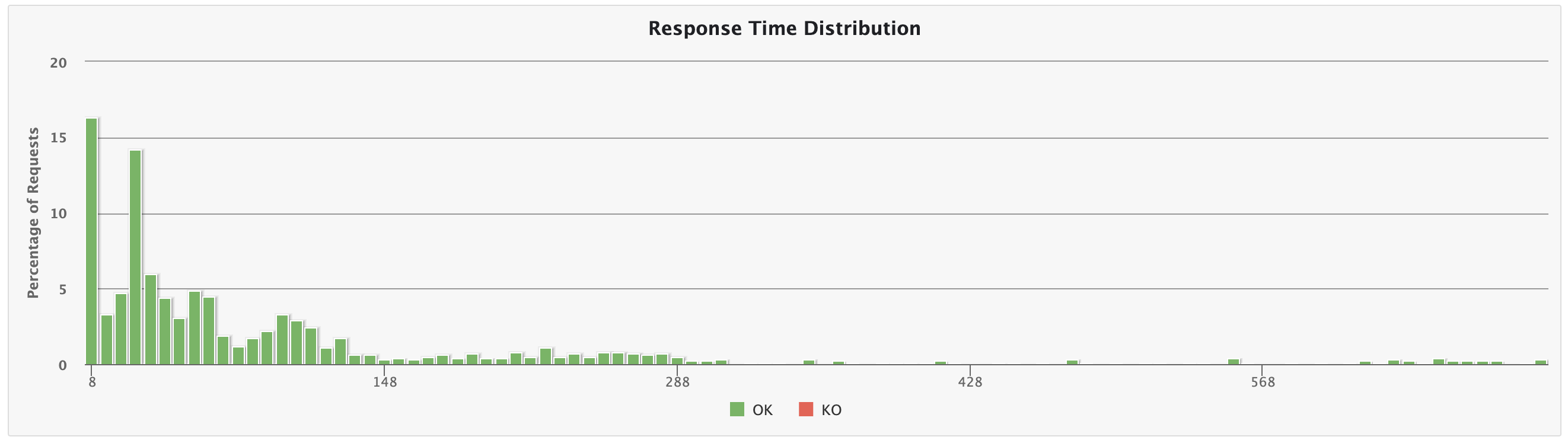

Response time distribution chart will be generated as below.

Latency Percentiles Analysis

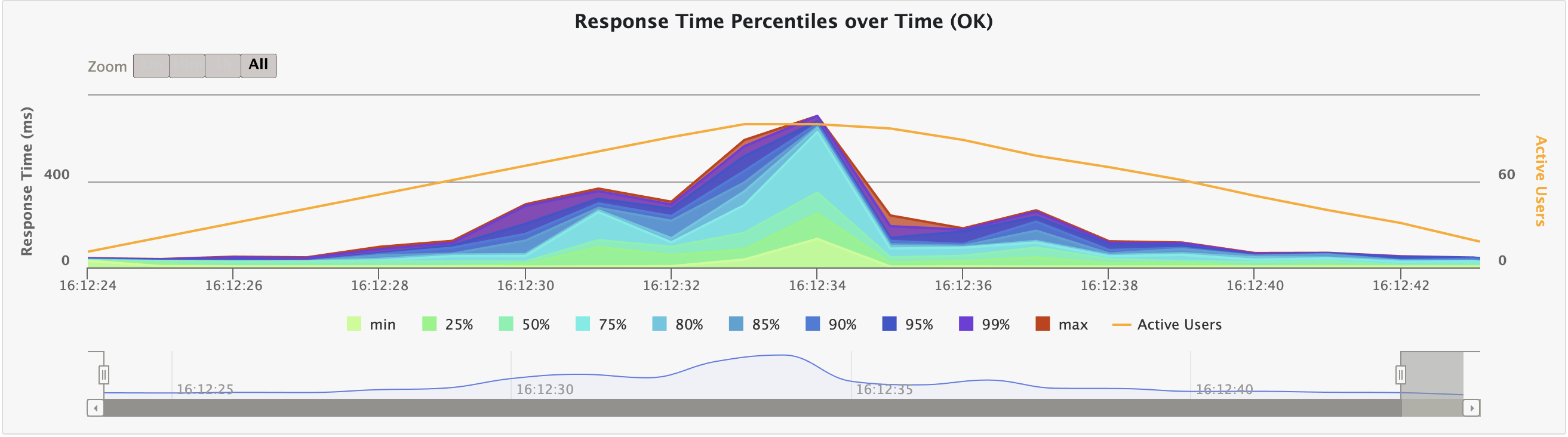

In a load test, a percentile is a statistical measure that indicates the percentage of requests that are completed within a certain response time. It helps you understand how your system is performing for a given proportion of users. Let’s analyze the metrics that we got from our load test.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
---- Global Information -----------------------------------------------
> request count                     1000 (OK=1000   KO=-     )
> min response time                    4 (OK=239    KO=-     )
> max response time                  705 (OK=705    KO=-     )
> mean response time                 100 (OK=100    KO=-     )
> std deviation                      136 (OK=136    KO=-     )
> response time 50th percentile       48 (OK=48     KO=-     )
> response time 75th percentile      111 (OK=111    KO=-     )
> response time 95th percentile      395 (OK=395    KO=-     )
> response time 99th percentile      657 (OK=657    KO=-     )
> mean requests/sec                47.62 (OK=48     KO=-     )

In above metrics we can see the total request count: 1000 (OK=1000 KO=-) which means all 1000 requests are completed successfully which is a positive indicator for stability. Let’s analyze the Percentile:

50th Percentile (Median): In our case, the 50th percentile is 48 ms, which means 50% of the requests were processed within 48 ms, suggesting that the system handles typical load well for the majority of requests

75th Percentile: In our case, the 75th percentile is 111 ms, which means 75% of requests are handled within 111 ms.

95th Percentile: In our case, the 95th percentile is 395 ms, which means 95% of requests are handled within 395 ms, which is still under 800 ms threshold.

99th Percentile: In our case, the 99th percentile is 657 ms, which means 99% of requests are handled within 657 ms, which is still under 800 ms threshold.

If 90th, 95th, and 99th percentile latency is less than 800 ms threshold for a given proportion of users, that means system is highly stable for 100 concurrent users over 10 seconds.

Gatling load testing is an efficient way to ensure your application’s stability, speed, and scalability under real-world conditions. By simulating high traffic, analyzing response times, and monitoring percentile latency metrics, you can identify performance bottlenecks and optimize your system.

What is load testing ?#

Types of Load test#

Capacity Test#

Stress Test#

Soak test#

Gatling#

Why Gatling?#

Prerequisites#

Run the login App locally#

Download Gatling for JavaScript#

Setup Gatling Project Locally#

Create API Load Test Script#

Create Feeder file#

Importing Gatling functions#

Define the Simulation function#

Configuring the Protocol#

Write the scenario#

Define the injection profile#

Test execution#

Run the Simulation locally#

Response Time Distribution Analysis#

Latency Percentiles Analysis#
